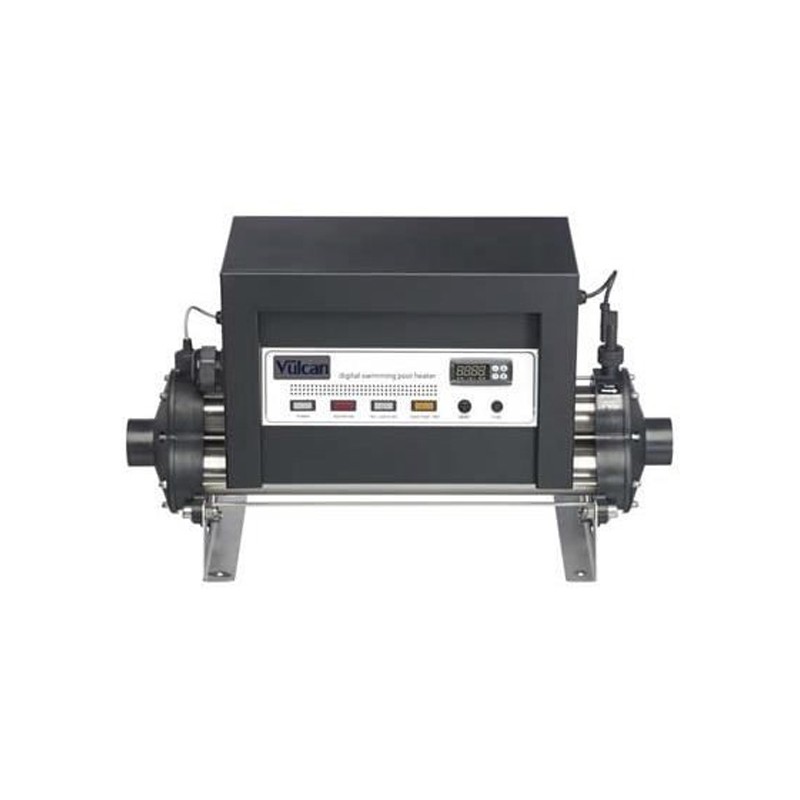

Heater pool with resistance titanium 30Kw Elecro Vulcan V - 100 Tri.
Heater for pool with effective resistance in titanium.

More details

Online only

ELE-150-0156

New product

More info

Heater pool with resistance titanium 30Kw Elecro Vulcan V - 100 Tri.
Heater for pool with effective resistance in titanium.

Construction
Heater V-100 was designed a material and components of higher quality in the factory of Elecro in Hertfordshire in the United Kingdom.
His body consists of 3 tubes together using input and output of special polymer alloy collectors. The low ratio W/cm2 of resistance limit scaling and allows to increase the life and performance of the device. Output collector of the with a flow sensor connected to the electronic device.
The heater is mounted on 2 fixed feet in stainless steel assuring wall mounting (horizontal only) or on the floor. The box containing the electronics and the digital display is painting expoxy coated aluminium. The incorpre case also 2 contactors Schneider by resistance.

Located in the façade, a digital display, control lights and keys to select the desired temperature.

Use
The desired temperature can be programmed easily using the buttons on the side of the housing.
Three-phase power is turned on via contactors Schneider. The security and protection of the equipment is provided by the ultra reliable flow detector.

Specifications & models
Power supply: Three-phase connection
Amperage: 44A
Volume pool maxi: Volume > 100 m 3
Resistances: Titanium, high compaction of MgO
Tubes: Stainless steel 316 BS
Control thermostat: 0 > 40 ° C (scale of 0.5 ° C)
Safety disconnector: 60 ° C (automatic reset / 1 by resistance)
Flow detector: contact blade covered with a thin layer of gold with axis of titanium support
Wiring: A high temperature, sheath in silicone, flat copper conductors
Contactors: Schneider
Seals: EPDM high temperature
Water connections: comes with adapters for diam. 63mm pressure PVC pipe
Pressure: 4 bar maximum
Installation: Fixing to the ground or well wall (horizontal only)
Compliance with standards: Directive European compatibility 89/336/EEC and 93/068/EEC electromagnetic
Harmonized standards: EN 55014 - EN55104 in 5501, 5502 EN, IEC 801-4, IEC 801-2, IEC 801-3
Low voltage 72/23/EEC directive
Standard harmonised 60335-2-35

The electric heater must be placed at 3.50 m minimum of the plan d "water (standard NF C15-100)

Features:
-Fully equipped heater
-Easy installation
-Robust and durable construction
-Digital control thermostat
-Resistance corrosion-resistant titanium
-Resistance with a low ratio W/cm2 to limit scaling
-BS 316 stainless steel tube
-Easy to use
-Integrated flow sensor
-Mounting feet for installation on the ground or well wall (only horizontal)
-Control thermostat
-Safety circuit breaker (manual reset)
-Weight: 19 kg
-Guarantee 2 years
