Spotcool Trotec PT-3500 SP air conditioner for localized air conditioning.
Suitable for efficient cooling of individual work areas, machines or sub-assemblies of systems, server rooms or networks, spot cooling of events, welding work or in catering.

More details

Online only

PT3500SP

New product

More info

Spotcool Trotec PT-3500 SP air conditioner for localized air conditioning.
Suitable for efficient cooling of individual work areas, machines or sub-assemblies of systems, server rooms or networks, spot cooling of events, welding work or in catering.

A source of freshness for workstations exposed to heat.
With a cooling capacity of 3.5 kW and an air flow of 600 m³/h, the PT 3500 SP immediately lowers the temperature where it is needed. Ready to use without prior installation work, this air conditioner is operational once connected.
The cold air line of this air conditioner can be tilted 150 degrees and rotate 360 degrees to cool a precise space in a targeted manner. And since this spotcooler is equipped with two separate cold air lines, the cold air flow can be distributed in several directions without problems.

The PT 3500 SP provides a mobile and instantaneous source of cold.
In the working environment, the PT 3500 SP mobile air conditioner is the targeted solution to prevent heat stress and protect installations from the effects of excessively high temperatures.

Solid construction, very easy handling and excellent value for money make this mobile air conditioner a device of choice for localized air conditioning in workshops, work halls, industrial kitchens and many other work environments.
For example, you can use the PT 3500 SP to lower the temperature of a workstation, machines or components of a plant, server room or network, or to specifically cool a space in the gastronomy, events or welding work.

Practical details:
-Air conditioner Multifunction for ambient cooling, spot cooling, aeration or dehumidification.
- Dual-channel spotcooler with two independent steerable cold air lines for different target areas.
- No installation work required, immediately ready for use.
- Timer function for programming the start or stop time.
- Robust construction made of steel sheets resistant even to the harshest operating conditions.
- High maneuverability and mobility thanks to high compactness and solid steering castors with lock.

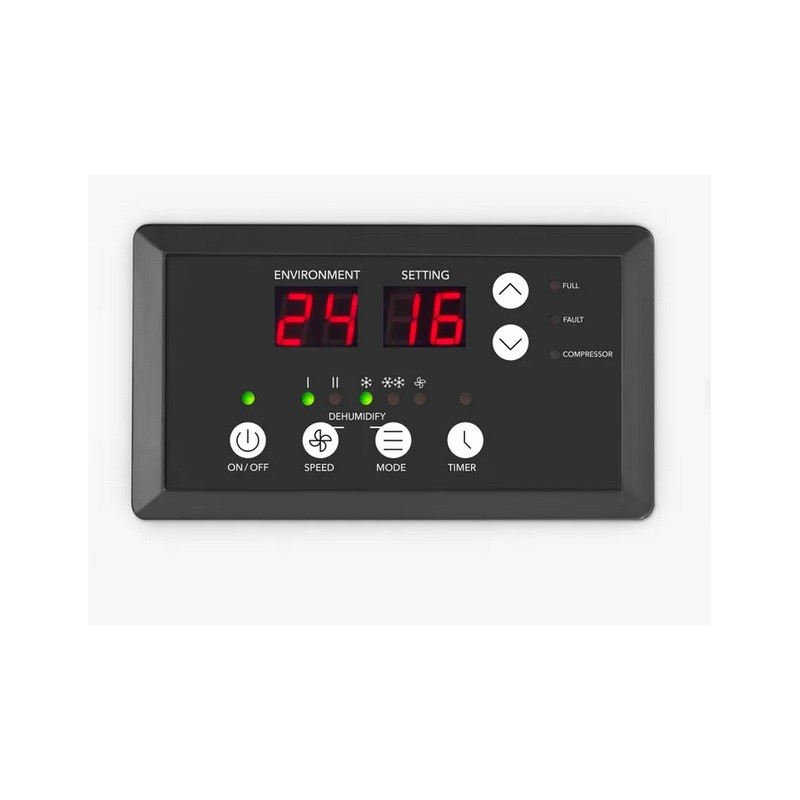

- Electronic thermostat with dual display for real value and set value.
- LED display and membrane keys.
- Warning light when the water collector tank is full.
- Connection for external evacuation of condensation water.
- Washable air filter for the protection of internal components against fouling.
- Possibility of connecting a hose for the evacuation of hot air to the outside.

Equipment and operation of the Spotcooler PT3500SP air conditioner.
-

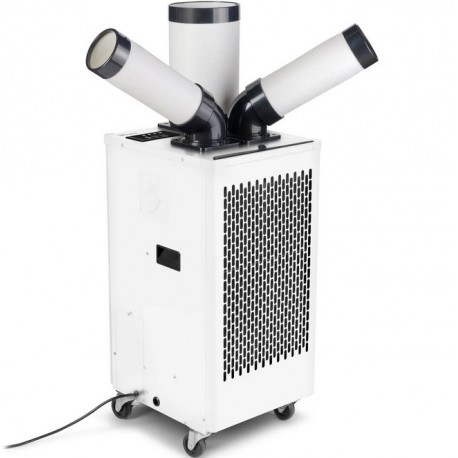

The PT 3500 SP dual-channel spotcooler has two independent air outlets, which can be rotated 360° and 150° tilted, allowing the fresh air flow to be directed in a targeted manner to two zones.
- If necessary, it is possible to connect to the hot air outlet of the PT 3500 SP an optional air hose to evacuate hot air to the outside. Similarly, instead of having to empty the condensation water collection tank by hand, an alternative is to connect an optional hose for automatic condensation water evacuation.

- With its capacity of three liters, the condensation water recovery tank of the PT 3500 SP ensures long periods of cooling without interruption.
And to empty it, nothing could be simpler, a few gestures are enough to get it out.
- The robust steel crankcase of the PT 3500 SP is a "tough guy" and offers exceptional mobility and maneuverability thanks to its compact dimensions and strong steering casters.
- To protect the internal components from fouling, the PT 3500 SP is equipped on the suction side with an air filter that is as easy to extract as it is to wash.

Technical specifications for localized air conditioning Spotcool PT 2000 SP Trotec:
Monoblock Spotcooling
Cooling capacity Max 3 kW - 12000 Btu/h
Air flow: Max speed 600 m³/h
Fan :Ventilation levels 2
Axial: yes
Coolant
Air Coolant
Ambient conditions:
Temperature range min 18°C
Max temperature range 45°C
Electrical values:
Connection to the network 220-240 V / 50 Hz
Power consumption 1.7 kW
Rated current absorbed 6.2 A
Power supply: EEC contact form 7/7
Cable length:1.6m
Compressor: Refrigerant type R290
Refrigerant quantity: 300 g
GWP factor 3: CO2 - Equivalent 0.001
Pressure on the suction side:1 MPa
Output side pressure: 2.5 MPa
Water tank Content 7 liters
Acoustic values: Distance 1 m 57 dB(A)
Air exhaust:
Total length - Cold air exhaust pipe 0,385 m
Diameter cold air exhaust pipe Ø 120 mm
Total length - Hot air exhaust pipe 0,350 m
Diameter hot air exhaust pipe Ø 200 mm
Size
Length: 430 mm
Width: 493 mm
Height: 944 mm
Weight: 49 kg
Condensate evacuation With water tank yes
Ambient air filter
Cleaner yes
Additional features:
One-time cooling: yes
Dehumidification function: yes
Ventilation function: yes
Automatic fault diagnosis: yes
Automatic restart function: yes
Compressor protection: yes
Anti-overheating protection: yes
Automatic defrost: yes
Variable orientation of fresh air outlet: yes
Temperature display: yes
Warning light when the water collection tray is full: yes
Alarm in case of full water tank: yes
Mobility with plastic transport wheels with lock
Handles for Spotcooling bowl
Air splitter for spot cooling: yes
Number of exit openings: 2
Warranty: 2 years.

Brand: Trotec
